その2までで、slackへの通知ができるようになった。その3ではslackから情報を受け取るところを作る。
4. ApiGatewayとpostのlambdaを作る
まずはLambda
import json import urllib.request import boto3 def lambda_handler(event, context): client = boto3.client("codepipeline") msg = event["body"] # httpでpostされたpayloadの格納 if not msg: return { 'statusCode': 403, 'headers': { 'Content-Type': 'application/json', 'Access-Control-Allow-Origin': '*' }, 'body': "Forbidden" } msg_decode = urllib.parse.unquote(msg) msg_replace = msg_decode.replace("payload=", '') new_msg = json.loads(msg_replace) token = new_msg["actions"][0]["value"] approval_data = token.split(',') pipeline_name = approval_data[1] token = approval_data[0] stage_name = "approval-stage" action_name = "approval-action" if new_msg["actions"][0]["name"] == "ok": client.put_approval_result( pipelineName=pipeline_name, stageName=stage_name, result={ 'summary': 'Approval', 'status': 'Approved', }, token=token, actionName=action_name ) return { 'statusCode': 200, 'headers': { 'Content-Type': 'application/json', 'Access-Control-Allow-Origin': '*' }, 'body': "```承認されました```" } else: client.put_approval_result( pipelineName=pipeline_name, stageName=stage_name, result={ 'summary': 'Rejected', 'status': 'Rejected', }, token=token, actionName=action_name ) return { 'statusCode': 200, 'headers': { 'Content-Type': 'application/json', 'Access-Control-Allow-Origin': '*' }, 'body': "```却下されました```" }
Lambdaのデプロイは2.のやり方と一緒。 APIGatewayとの繋ぎはこのような雰囲気で。
## API Gateway resource "aws_api_gateway_rest_api" "api" { name = "${local.name}-rest_api-${local.environment}" endpoint_configuration { types = ["REGIONAL"] } } # /approval-api resource "aws_api_gateway_resource" "approval" { path_part = "approval" parent_id = aws_api_gateway_rest_api.api.root_resource_id rest_api_id = aws_api_gateway_rest_api.api.id } resource "aws_api_gateway_method" "approval_method" { rest_api_id = aws_api_gateway_rest_api.api.id resource_id = aws_api_gateway_resource.approval.id http_method = "POST" authorization = "NONE" } resource "aws_api_gateway_integration" "approval_integration" { rest_api_id = aws_api_gateway_rest_api.api.id resource_id = aws_api_gateway_resource.approval.id http_method = aws_api_gateway_method.approval_method.http_method integration_http_method = "POST" type = "AWS_PROXY" uri = aws_lambda_function.handler.invoke_arn } # Lambda resource "aws_lambda_permission" "apigw_lambda" { statement_id = "AllowExecutionFromAPIGateway" action = "lambda:InvokeFunction" function_name = aws_lambda_function.handler.function_name principal = "apigateway.amazonaws.com" # More: http://docs.aws.amazon.com/apigateway/latest/developerguide/api-gateway-control-access-using-iam-policies-to-invoke-api.html source_arn = "arn:aws:execute-api:${local.region}:${data.aws_caller_identity.self.account_id}:${aws_api_gateway_rest_api.api.id}/*/${aws_api_gateway_method.approval_method.http_method}*/*" } resource "aws_api_gateway_deployment" "default" { rest_api_id = aws_api_gateway_rest_api.api.id stage_name = aws_api_gateway_stage.default.stage_name triggers = { redeployment = sha1(jsonencode(aws_api_gateway_rest_api.api.body)) } lifecycle { create_before_destroy = true } } resource "aws_api_gateway_stage" "default" { deployment_id = aws_api_gateway_deployment.dummy.id rest_api_id = aws_api_gateway_rest_api.api.id stage_name = "v1" xray_tracing_enabled = true }
slackからの結果を受け取るAPIが作成できた。
5. ApiGatewayを呼び出すURLをslackアプリにセットする
このAPIをslackアプリへセットする

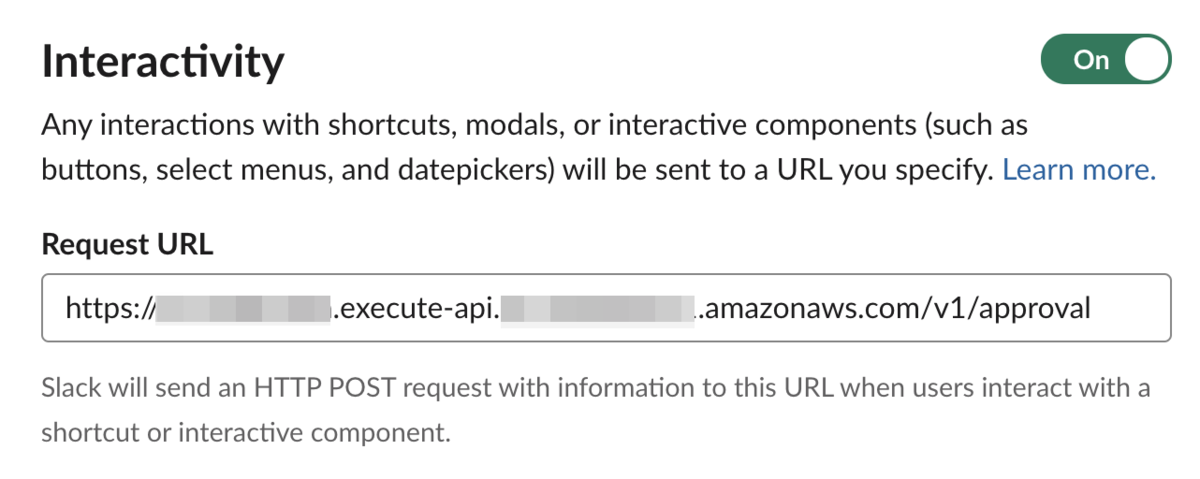

左メニューの Interactivity & Shortcuts
でURLを設定する。
slackでの更新の準備ができた
(その4へ続く)
